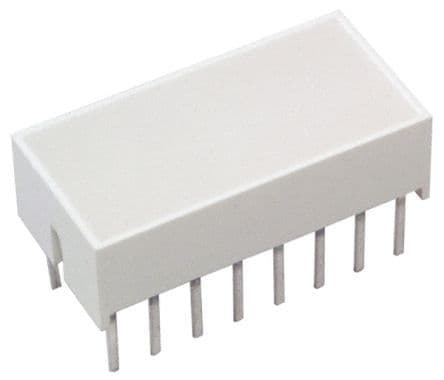

Uni-color red LED light bar featuring 8 elements in a 16-pin DIP package for through-hole mounting. Emitting red light at 635nm with a typical forward current of 20mA and a luminous intensity of 80mcd. Operates within a temperature range of -40°C to 85°C, with a maximum reverse voltage of 6V and a voltage rating of 2V. This RoHS compliant component offers a diffused, domed, round lens style with a 3mm lens size.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HLMP-2685 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Broadcom HLMP-2685 technical specifications.
| Package/Case | DIP |
| Color | Red |
| Current | 30mA |
| Depth | 10.16mm |
| Display Type | Segment |
| Forward Current | 20mA |
| Height | 6.22mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 8.89mm |
| Lens Size | 3mm |
| Lens Style | Round, Domed, Diffused, Rectangular |
| Luminous Intensity | 80mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 16 |
| Number of Elements | 1 |
| Number of LEDs | 8 |
| Number of Segments | 1 |
| Package Quantity | 160 |
| Packaging | Rail/Tube |
| Power Dissipation | 135W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 6V |
| RoHS Compliant | Yes |
| Series | HLMP-2685 |
| Voltage Rating | 2V |
| Width | 10.16mm |
| RoHS | Compliant |
Download the complete datasheet for Broadcom HLMP-2685 to view detailed technical specifications.
