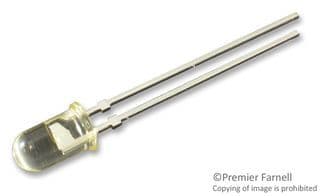

Single color yellow LED emitter, featuring a 5mm round, domed, diffused lens. This through-hole component operates with a 20mA forward current and a 5V reverse voltage, delivering 140mcd luminous intensity at a 585nm wavelength. Housed in a T-1 3/4 plastic package with a 24° viewing angle, it is RoHS compliant and operates between -40°C and 100°C.
PackageRadial
MountingThrough Hole
Quick Jump:
Technical Specifications
Broadcom HLMP-3850 technical specifications.
General
| Package/Case | Radial |
| Color | Yellow |
| Depth | 6.1mm |
| Diameter | 28.2mm |
| Forward Current | 20mA |
| Height | 12.44mm |
| Illumination Color | Yellow |
| Lead Free | Lead Free |
| Lead Length | 23mm |
| Length | 6.1mm |
| Lens Color | Colorless |
| Lens Size | 5mm |
| Lens Style | Round, Domed, Dome, Circular, Diffused |
| Lens Transparency | Clear |
| Luminous Intensity | 140mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Angle | 24° |
| Wavelength | 585nm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HLMP-3850 Datasheet
Download the complete datasheet for Broadcom HLMP-3850 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
