Dual color LED emitter featuring high efficiency red and green illumination. This diffused, T-1 3/4 (5mm) LED has a plastic package with radial leads, suitable for through-hole and panel mounting. Operating with a forward current of 30mA, it offers a luminous intensity of 2.1mcd and a viewing angle of 65°. The component is lead-free and RoHS compliant, with a maximum power dissipation of 135mW and a reverse voltage rating of 5V.
PackageRadial
MountingThrough Hole, Panel
Power135mW
Quick Jump:
Technical Specifications
Broadcom HLMP-4000 technical specifications.
General
| Package/Case | Radial |
| Color | Green, Red |
| Depth | 6.1mm |
| Diameter | 5mm |
| Forward Current | 30mA |
| Height | 9.19mm |
| Illumination Color | Green, Red |
| Lead Free | Lead Free |
| Lead Length | 25mm |
| Length | 6.1mm |
| Lens Color | White |
| Lens Size | 5mm |
| Lens Style | Dome, Round, Diffused, Circular, Rectangular |
| Lens Transparency | Diffused |
| Luminous Intensity | 2.1mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -20°C |
| Max Power Dissipation | 135mW |
| Mount | Through Hole, Panel |
| Number of Elements | 2 |
| Number of LEDs | 2 |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Power Dissipation | 135mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Termination | Radial |
| Viewing Angle | 65° |
| DC Rated Voltage | 1.9V |
| Wavelength | 570nm |
| Width | 6.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HLMP-4000 Datasheet
Download the complete datasheet for Broadcom HLMP-4000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

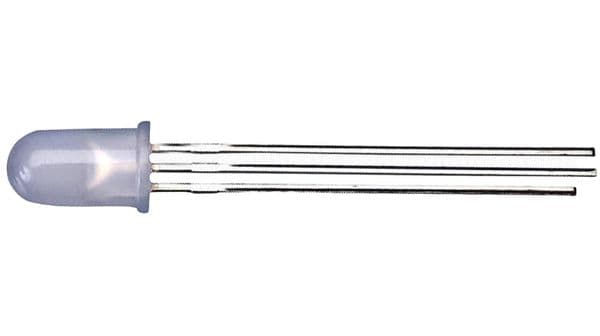

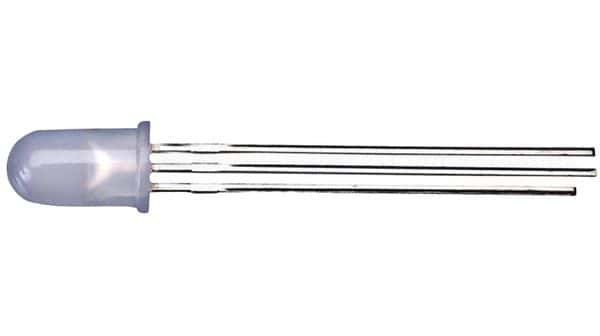

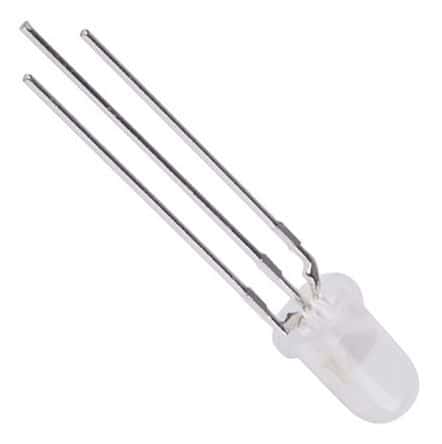

Product Images
