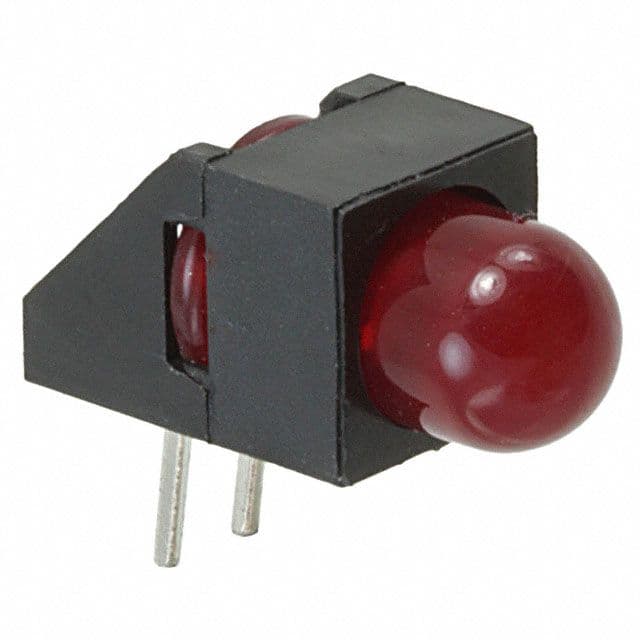

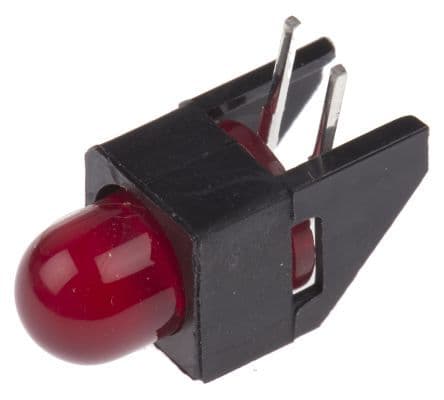

Single Color LED emitter, high efficiency red illumination, featuring a 5mm diffused, tinted, dome lens. Operates with a 2mA forward current and 1.7V forward voltage, delivering 2.3mcd luminous intensity at a 626nm wavelength. Through-hole mount with a 2.54mm lead pitch, this RoHS compliant component has a viewing angle of 50° and a maximum power dissipation of 14mW. Packaged in bulk, it offers a wide operating temperature range from -40°C to 100°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HLMP-4700-C00B2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Red |
| Current | 2mA |
| Depth | 6.1mm |
| Diameter | 5mm |
| Forward Current | 2mA |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Lead Length | 4.1mm |
| Lead Pitch | 2.54mm |
| Length | 6.1mm |
| Lens Style | Diffused, Tinted, Dome, Round, Colored, Circular |
| Luminous Intensity | 2.3mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Power Dissipation | 14mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Series | HLMP-47xx |
| Viewing Angle | 50° |
| Voltage Rating | 1.7V |
| Wavelength | 626nm |
| Width | 6.2mm |
| RoHS | Compliant |
