Single Color LED emitter, featuring a standard red illumination color with a diffused, tinted, round dome lens. This through-hole component operates with a 10mA current and a 1.6V forward voltage, offering a luminous intensity of 1.2mcd at a 640nm wavelength. It is housed in a T-3/4 plastic package with a 90° viewing angle and a 2.82mm depth, suitable for applications within a -40°C to 85°C temperature range.
Current10mA
Voltage Rating1.6V
MountingThrough Hole, Axial
Quick Jump:
Technical Specifications
Broadcom HLMP-6000-E0010 technical specifications.
General
| Color | Red |
| Current | 10mA |
| Depth | 2.82mm |
| Forward Current | 50mA |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Lead Length | 3.4mm |
| Length | 6.6mm |
| Lens Style | Diffused, Tinted, Round, Dome, Colored, Circular |
| Luminous Intensity | 1.2mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Axial |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Shape | Round |
| T-code | T-3/4 |
| Viewing Angle | 90° |
| Voltage Rating | 1.6V |
| Wavelength | 640nm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HLMP-6000-E0010 Datasheet
Download the complete datasheet for Broadcom HLMP-6000-E0010 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

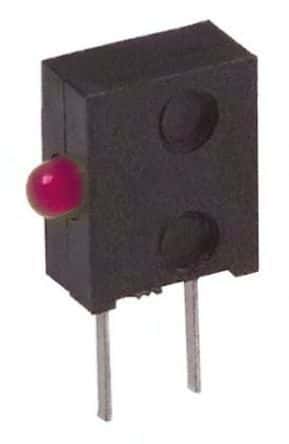

Product Images
