High-performance green single-color LED emitter, featuring a tinted diffused, domed lens with a 3mm diameter. This through-hole component operates with a forward current of 30mA and a typical voltage rating of 2.1V, delivering a luminous intensity of 7mcd at a 90° viewing angle. Encased in a T-3/4 plastic package with axial leads, it offers a wide operating temperature range from -40°C to 100°C and a wavelength of 569nm. RoHS compliant and lead-free.
PackageAxial
Current10mA
Voltage Rating2.1V
MountingThrough Hole
Quick Jump:
Technical Specifications
Broadcom HLMP-6500-F0010 technical specifications.
General
| Package/Case | Axial |
| Color | Green |
| Current | 10mA |
| Depth | 2.82mm |
| Diameter | 1.8mm |
| Forward Current | 30mA |
| Height | 2.44mm |
| Illumination Color | Green |
| Lead Free | Lead Free |
| Lead Length | 3.4mm |
| Length | 6.6mm |
| Lens Size | 3mm |
| Lens Style | Diffused, Tinted, Round, Domed, Dome, Colored, Circular |
| Luminous Intensity | 7mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Operating Supply Voltage | 2.7V |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Series | HLMP-6xxx |
| Viewing Angle | 90° |
| Voltage Rating | 2.1V |
| DC Rated Voltage | 2.1V |
| Wavelength | 569nm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HLMP-6500-F0010 Datasheet
Download the complete datasheet for Broadcom HLMP-6500-F0010 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

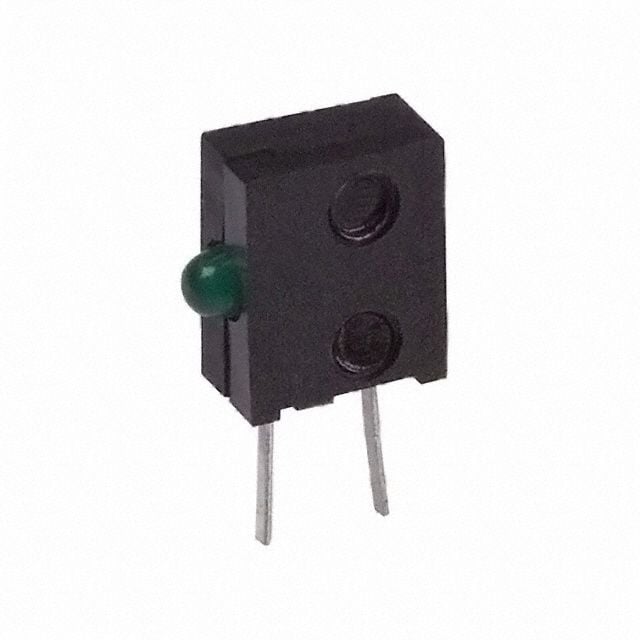

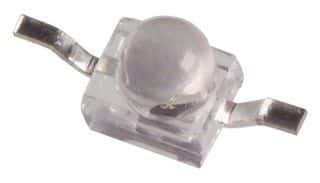

Product Images
