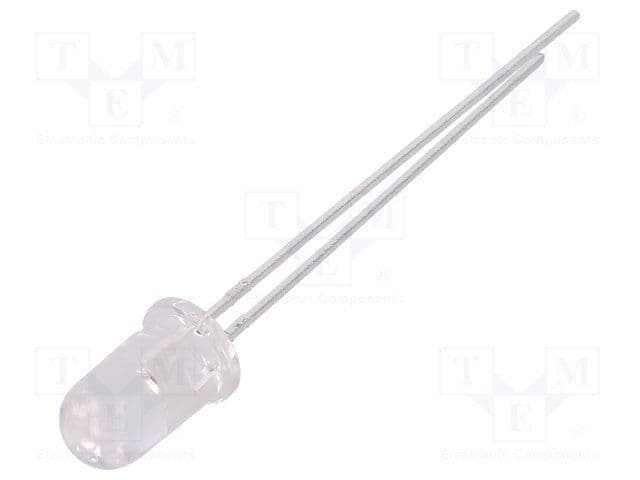

Single color red LED emitter, featuring a clear, nondiffused, round, domed lens with a 5mm diameter. This through-hole component operates with a 30mA forward current, delivering a luminous intensity of 6000mcd at a 626nm wavelength. It offers a narrow 8° viewing angle and is housed in a T-1 3/4 plastic package. The LED is lead-free, RoHS compliant, and operates within a temperature range of -40°C to 100°C.
PackageRadial
MountingThrough Hole
Quick Jump:
Technical Specifications
Broadcom HLMP-C008-U0000 technical specifications.
General
Package/Case
Radial
Color
Red
Depth
6.1mm
Diameter
5mm
Forward Current
30mA
Height
9.19mm
Illumination Color
Red
Lead Free
Lead Free
Length
6.1mm
Lens Color
Colorless
Lens Size
5mm
Lens Style
Round, Domed, Dome, Diffused, Circular
Lens Transparency
Clear
Luminous Intensity
6000mcd
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Elements
1
Number of LEDs
1
Package Quantity
2000
Packaging
Bulk
Radiation Hardening
No
Reverse Voltage
5V
RoHS Compliant
Yes
Viewing Angle
8°
Wavelength
626nm
Compliance
RoHS
Compliant
