Broadcom
HLMP-CM15-S0000

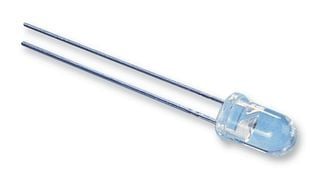

Single Color LED, Green, Untinted Nondiffused, T-1 3/4, 5mm, PLASTIC PACKAGE-2
PackageRadial
MountingThrough Hole
Quick Jump:
Technical Specifications
Broadcom HLMP-CM15-S0000 technical specifications.
General
Package/Case
Radial
Color
Green
Diameter
5mm
Forward Current
20mA
Height
8.91mm
Illumination Color
Green
Lens Color
Colorless
Lens Size
5mm
Lens Style
Round, Domed
Lens Transparency
Clear
Luminous Intensity
1900mcd
Mount
Through Hole
Package Quantity
500
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Viewing Angle
15°
Wavelength
524nm
Compliance
RoHS
Compliant
Datasheet
Broadcom HLMP-CM15-S0000 Datasheet
Download the complete datasheet for Broadcom HLMP-CM15-S0000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
