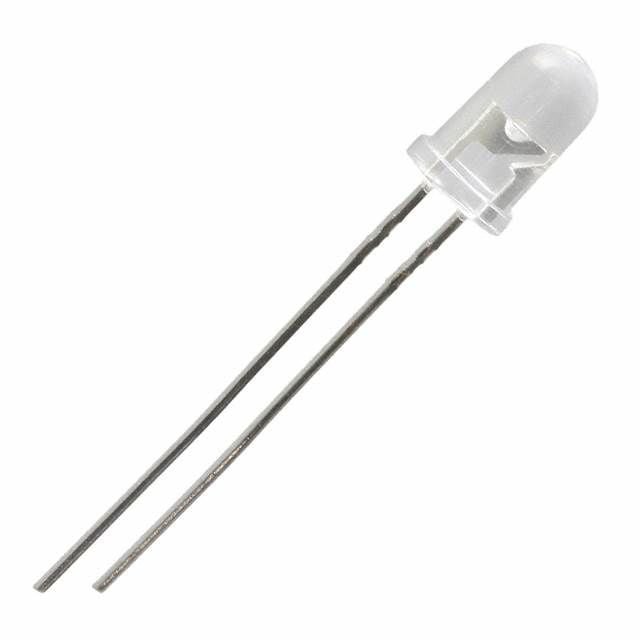

Red, untinted, single-element LED emitter with a clear, colorless, dome-shaped lens. Features a 5mm lens size and a 23° viewing angle, delivering 12000mcd luminous intensity and 2.3lm luminous flux. Operates with a 20mA forward current and a 5V reverse voltage, with a power dissipation of 120mW. This RoHS compliant component is housed in a T-1 3/4 plastic package with radial leads for through-hole mounting, suitable for operating temperatures from -40°C to 100°C.
PackageRadial
MountingThrough Hole
Power120mW
Quick Jump:
Technical Specifications
Broadcom HLMP-EG2A-XY0DD technical specifications.
General
| Package/Case | Radial |
| Color | Red |
| Depth | 5.8mm |
| Forward Current | 20mA |
| Height | 8.91mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 5.8mm |
| Lens Color | Colorless |
| Lens Size | 5mm |
| Lens Style | Dome, Round, Colorless, Circular |
| Lens Transparency | Clear |
| Luminous Flux | 2.3lm |
| Luminous Intensity | 12000mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 1 |
| Packaging | Ammo Pack |
| Power Dissipation | 120mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Angle | 23° |
| Wavelength | 630nm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HLMP-EG2A-XY0DD Datasheet
Download the complete datasheet for Broadcom HLMP-EG2A-XY0DD to view detailed technical specifications.
