Single color LED emitter, orange illumination, featuring a T-1 3/4 (5mm) radial package with a colorless, diffused dome lens. This through-hole component operates with a 50mA forward current and a 2.02V DC rated voltage, delivering 12000mcd luminous intensity at a 590nm wavelength. It offers a narrow 8° viewing angle and is RoHS compliant, suitable for operation between -40°C and 100°C.
PackageRadial
MountingThrough Hole
Quick Jump:
Technical Specifications
Broadcom HLMP-EL08-VY000 technical specifications.
General
| Package/Case | Radial |
| Color | Orange |
| Depth | 5.8mm |
| Diameter | 5mm |
| Forward Current | 50mA |
| Height | 8.91mm |
| Illumination Color | Orange |
| Lead Free | Lead Free |
| Lead Length | 22.9mm |
| Length | 5.8mm |
| Lens Color | Colorless |
| Lens Style | Dome, Round, Diffused, Colorless, Circular |
| Lens Transparency | Clear |
| Luminous Flux | 0.5lm |
| Luminous Intensity | 12000mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 20V |
| RoHS Compliant | Yes |
| Viewing Angle | 8° |
| DC Rated Voltage | 2.02V |
| Wavelength | 590nm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HLMP-EL08-VY000 Datasheet
Download the complete datasheet for Broadcom HLMP-EL08-VY000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

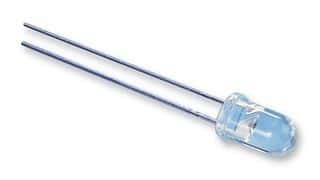

Product Images
