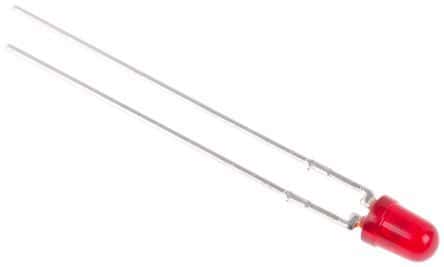

Single color LED emitter, deep red illumination, featuring a diffused red, dome-shaped lens with a 3mm diameter. This through-hole component operates with a 20mA forward current, a 5V reverse voltage, and a power dissipation of 87mW. It offers a luminous intensity of 45mcd at a 637nm wavelength and a 60° viewing angle. Encased in a T-1 (3mm) plastic package with 2.54mm lead pitch, it is RoHS compliant and operates between -20°C and 100°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HLMP-K101 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | T |
| Color | Red |
| Depth | 3.43mm |
| Diameter | 0.2inch |
| Forward Current | 20mA |
| Height | 6.35mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Lead Length | 24mm |
| Lead Pitch | 2.54mm |
| Length | 3.43mm |
| Lens Color | Red |
| Lens Size | 3mm |
| Lens Style | Dome, Circular, Round, Diffused, Colored |
| Lens Transparency | Diffused |
| Luminous Intensity | 45mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Outside Diameter | 3.18mm |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Power Dissipation | 87mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Angle | 60° |
| Wavelength | 637nm |
| RoHS | Compliant |
