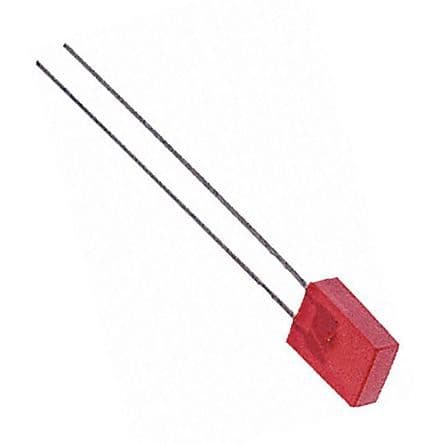

High-efficiency red standard LED emitter with a diffused, tinted red lens. Features a 20mA forward current, 30mA current rating, and 1.9V DC rated voltage. This through-hole component offers a 110° viewing angle and 3.5mcd luminous intensity at a 626nm wavelength. Packaged in bulk, this RoHS compliant LED operates from -40°C to 100°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HLMP-S201 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Broadcom HLMP-S201 technical specifications.
| Package/Case | Radial |
| Color | Red |
| Current Rating | 30mA |
| Forward Current | 20mA |
| Height | 8mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Lead Length | 25mm |
| Length | 5.18mm |
| Lens Color | Red |
| Lens Style | Rectangular, Diffused, Colored |
| Lens Transparency | Diffused |
| Luminous Intensity | 3.5mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of LEDs | 1 |
| Operating Wavelength-Nom | 626nm |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Viewing Angle | 110° |
| DC Rated Voltage | 1.9V |
| Wavelength | 626nm |
| Width | 2.23mm |
| RoHS | Compliant |
