Surface mount single color LED emitter, featuring an untinted diffused lens for wide illumination. This component offers an orange illumination color with a 170° viewing angle and a luminous intensity of 90mcd at a 20mA forward current. The LED is housed in a 1206 (3216 metric) package with dimensions of 3.2mm length, 1.6mm width, and 1.1mm height. Operating within a temperature range of -30°C to 85°C, it supports a maximum power dissipation of 60mW and a reverse voltage of 5V. This lead-free and RoHS compliant component is supplied on tape and reel.
Package1206
MountingSurface Mount
Power60mW
Quick Jump:
Technical Specifications
Broadcom HSMA-C150 technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Color | Orange |
| Depth | 1.6mm |
| Forward Current | 20mA |
| Height | 1.1mm |
| Illumination Color | Orange |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Lens Color | White |
| Lens Style | Diffused, Colorless, Rectangular, Untinted |
| Lens Transparency | Diffused |
| Luminous Intensity | 90mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Power Dissipation | 60mW |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 60mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Viewing Angle | 170° |
| Wavelength | 595nm |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HSMA-C150 Datasheet
Download the complete datasheet for Broadcom HSMA-C150 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

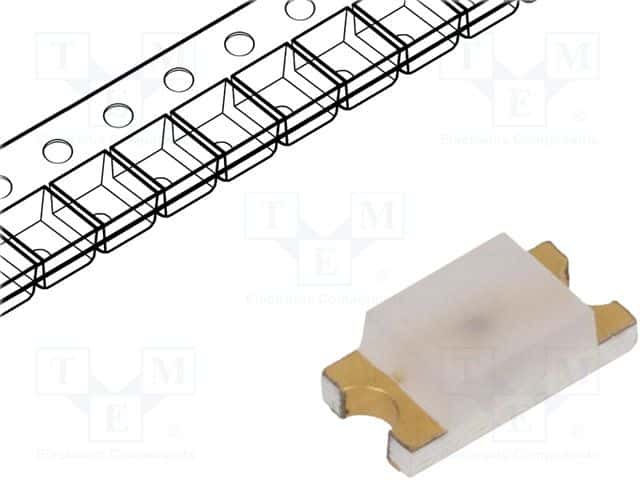

Product Images
