Single color LED emitter, red illumination, featuring a 2mm untinted, nondiffused, dome-style diffused lens. This surface-mount device (SMD/SMT) operates with a 20mA forward current and a 5V reverse voltage, offering a luminous intensity of 62.3mcd at a 630nm wavelength. With a 115° viewing angle and a compact 3mm x 1mm x 1mm package, it is designed for operation between -40°C and 85°C.
PackageSMD/SMT
MountingSurface Mount
Power72mW
Quick Jump:
Technical Specifications
Broadcom HSMC-C680 technical specifications.
General
| Package/Case | SMD/SMT |
| Color | Red |
| Depth | 1mm |
| Forward Current | 20mA |
| Height | 1mm |
| Illumination Color | Red |
| Length | 3mm |
| Lens Color | Colorless |
| Lens Style | Dome, Diffused, Colorless, Rectangular |
| Lens Transparency | Clear |
| Luminous Intensity | 62.3mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 72mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Angle | 115° |
| Wavelength | 630nm |
| Width | 1mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HSMC-C680 Datasheet
Download the complete datasheet for Broadcom HSMC-C680 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

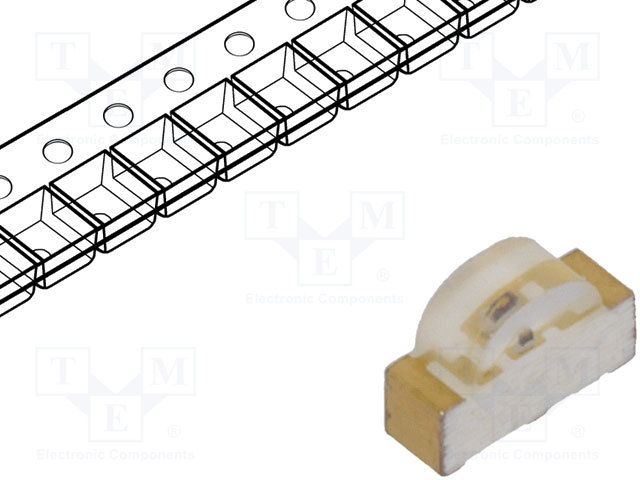

Product Images
