Broadcom
HSMF-C158
Dual Color LED, Amber/green, Untinted Diffused, 2.06mm, 3.20 X 2.70 MM, LEAD FREE PACKAGE-4
Package1210
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom HSMF-C158 technical specifications.
General
Case Code (Imperial)
1210
Package/Case
1210
Color
Green, Orange
Forward Current
20mA
Height
1.1mm
Illumination Color
Green, Orange
Length
3.2mm
Lens Color
White
Lens Style
Rectangular, Diffused, Colorless
Lens Transparency
Diffused
Luminous Intensity
45mcd
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of LEDs
2
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Viewing Angle
170°
Width
2.7mm
Compliance
RoHS
Compliant
Datasheet
Broadcom HSMF-C158 Datasheet
Download the complete datasheet for Broadcom HSMF-C158 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

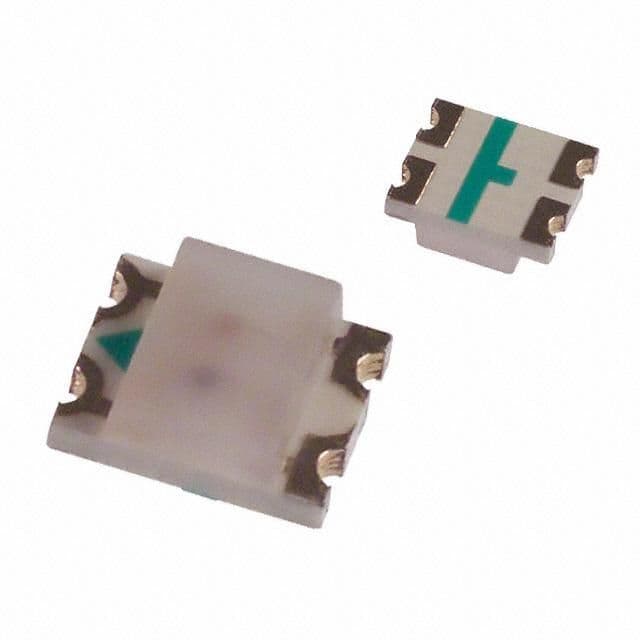

Product Images
