Dual Color LED emitter featuring high-efficiency red and green illumination. This miniature SMT component, housed in a 1608 (0603) case, offers a diffused, untinted rectangular lens. Operating with a 20mA forward current, it provides a luminous intensity of 10mcd at a 120° viewing angle. The LED operates within a temperature range of -40°C to 85°C and is RoHS compliant.
Package0603
MountingSurface Mount
Power52mW
Quick Jump:
Technical Specifications
Broadcom HSMF-C165 technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Color
Green, Red
Depth
0.8mm
Forward Current
20mA
Height
0.5mm
Illumination Color
Green, Red
Lead Free
Lead Free
Length
1.6mm
Lens Color
White
Lens Style
Untinted, Diffused, Rectangular, Colorless
Lens Transparency
Diffused
Luminous Intensity
10mcd
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Elements
2
Number of LEDs
2
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
52mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Voltage
5V
RoHS Compliant
Yes
Shape
Rectangular
Viewing Angle
120°
Wavelength
572nm
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Broadcom HSMF-C165 Datasheet
Download the complete datasheet for Broadcom HSMF-C165 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

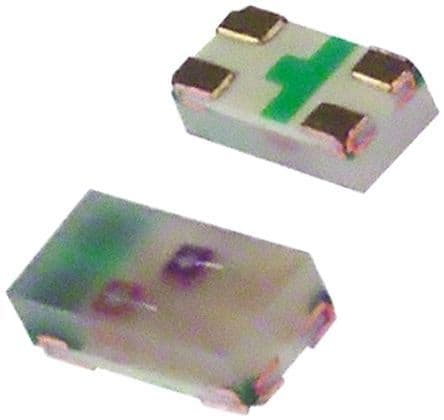

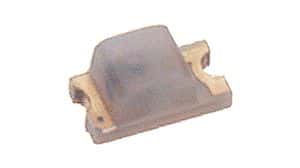

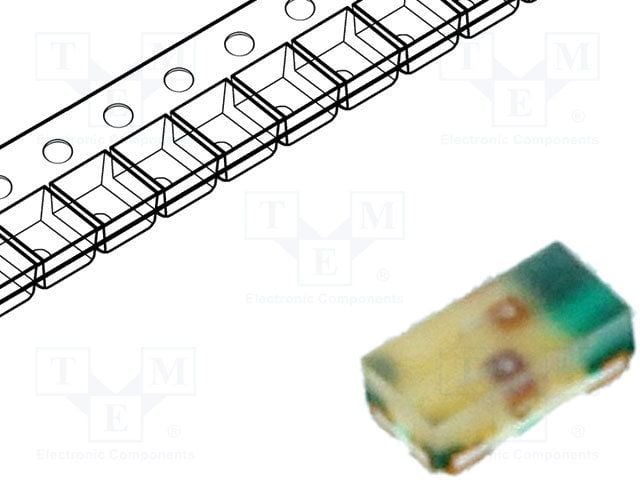

Product Images
