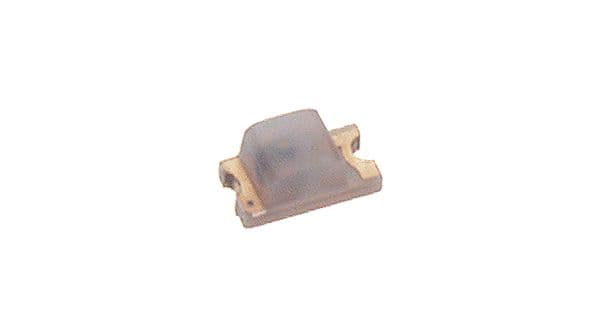

Miniature SMT LED emitter, single element, green illumination. Features a diffused, flat, rectangular, colorless lens with a 130° viewing angle. Operates with a 20mA forward current and 5V reverse voltage, dissipating 52mW. Housed in a 1005 metric / 0402 imperial case code, measuring 1mm x 0.5mm with 0.4mm height. Lead-free and RoHS compliant, with a typical luminous intensity of 15mcd at 572nm wavelength.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HSMG-C280 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Color | Green |
| Depth | 0.5mm |
| Forward Current | 20mA |
| Height | 0.4mm |
| Illumination Color | Green |
| Lead Free | Lead Free |
| Length | 1mm |
| Lens Color | White |
| Lens Size | 0.5mm |
| Lens Style | Diffused, Flat, Rectangular, Colorless |
| Lens Transparency | Diffused |
| Luminous Flux | 595lm |
| Luminous Intensity | 15mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 52mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Angle | 130° |
| Wavelength | 572nm |
| Width | 0.5mm |
| RoHS | Compliant |
