Surface mount single color LED emitter, red illumination, featuring a diffused, colorless rectangular lens. This component operates with a 20mA forward current and a 1.8V DC rated voltage, delivering 17mcd luminous intensity at a 639nm wavelength. Housed in a 1206 (3216 metric) plastic package, it offers a wide 170° viewing angle and is lead-free and RoHS compliant. Operating temperature range is -40°C to 85°C.
Package1206
MountingSurface Mount
Power78mW
Quick Jump:
Technical Specifications
Broadcom HSMH-C150 technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Color | Red |
| Depth | 1.6mm |
| Forward Current | 20mA |
| Height | 1.1mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Lens Color | White |
| Lens Style | Rectangular, Diffused, Colorless |
| Lens Transparency | Diffused |
| Luminous Intensity | 17mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 78mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Angle | 170° |
| DC Rated Voltage | 1.8V |
| Wavelength | 639nm |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HSMH-C150 Datasheet
Download the complete datasheet for Broadcom HSMH-C150 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

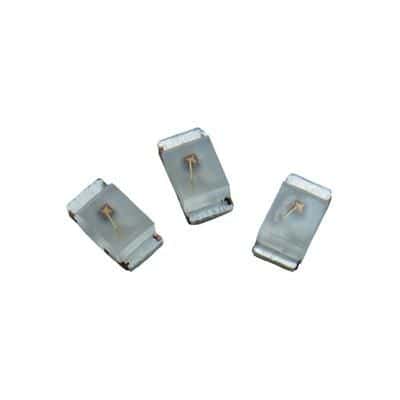

Product Images
