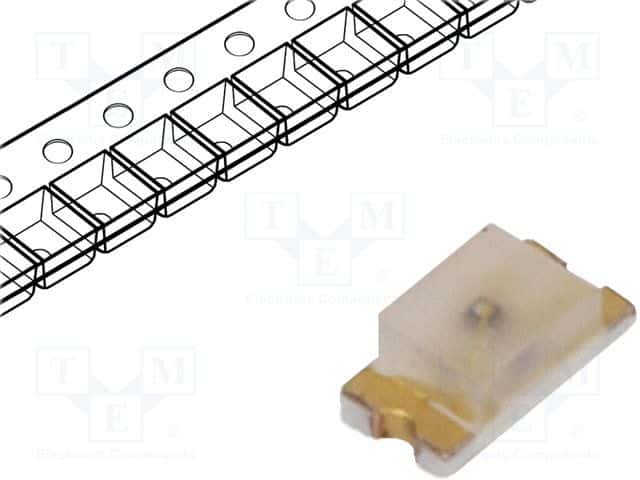

Surface mount single color LED emitter, red illumination, featuring a 0603 (1608 metric) package with diffused, untinted, flat rectangular lens. This component operates with a 20mA forward current, 1.8V DC rated voltage, and emits light at a 626nm wavelength with 17mcd luminous intensity. It is lead-free, RoHS compliant, and designed for surface mount termination with a wide 170° viewing angle.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HSMH-C191 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Color | Red |
| Depth | 0.8mm |
| Forward Current | 20mA |
| Height | 0.6mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Lens Color | White |
| Lens Size | 0.8mm |
| Lens Style | Flat, Diffused, Rectangular, Untinted, Dome, Colorless |
| Lens Transparency | Diffused |
| Luminous Intensity | 17mcd |
| Material | AlGaAs |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 65mW |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Power Dissipation | 52mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Viewing Angle | 170° |
| DC Rated Voltage | 1.8V |
| Wavelength | 626nm |
| Width | 0.8mm |
| RoHS | Compliant |
