Single Color LED Emitter, Blue, LCC-4 package. Features a 30mA forward current, 470nm wavelength, and 2240mcd luminous intensity. This surface mount component offers a 30° viewing angle and operates within a -40°C to 100°C temperature range. Clear, colorless lens style with a round, domed, clear lens. RoHS compliant.
PackagePLCC
MountingSurface Mount
Power114mW
Quick Jump:
Technical Specifications
Broadcom HSMN-A430-V50M2 technical specifications.
General
| Package/Case | PLCC |
| Color | Blue |
| Depth | 3.2mm |
| Forward Current | 30mA |
| Height | 3.87mm |
| Illumination Color | Blue |
| Length | 3.2mm |
| Lens Color | Colorless |
| Lens Style | Round, Domed, Clear, Dome, Circular |
| Lens Transparency | Clear |
| Luminous Flux | 0.45lm |
| Luminous Intensity | 2240mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Power Dissipation | 114mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Angle | 30° |
| Wavelength | 470nm |
| Width | 2.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HSMN-A430-V50M2 Datasheet
Download the complete datasheet for Broadcom HSMN-A430-V50M2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

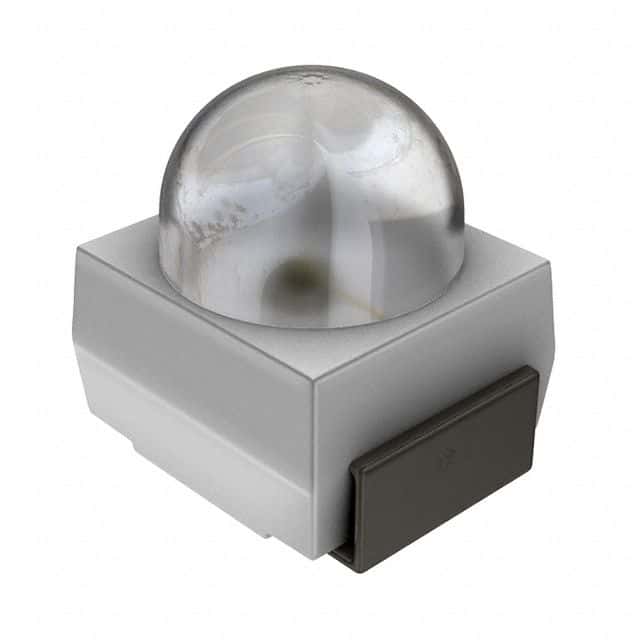

Product Images
