High-performance blue SMT LED emitter, 0603 package, featuring a diffused, colorless, rectangular lens. This single-color LED operates with a 20mA forward current, emitting blue light at a 470nm wavelength with a luminous intensity of 35mcd. Designed for surface mounting, it offers a wide 170° viewing angle and a compact 1.6mm x 0.8mm footprint with 0.8mm height. The component is lead-free, RoHS compliant, and suitable for operation between -40°C and 85°C.
Package0603
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom HSMN-C190 technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Color | Blue |
| Forward Current | 20mA |
| Height | 0.8mm |
| Illumination Color | Blue |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Lens Color | White |
| Lens Size | 0.8mm |
| Lens Style | Flat, Diffused, Colorless, Rectangular |
| Lens Transparency | Diffused |
| Luminous Intensity | 35mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of LEDs | 1 |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Viewing Angle | 170° |
| Wavelength | 470nm |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HSMN-C190 Datasheet
Download the complete datasheet for Broadcom HSMN-C190 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

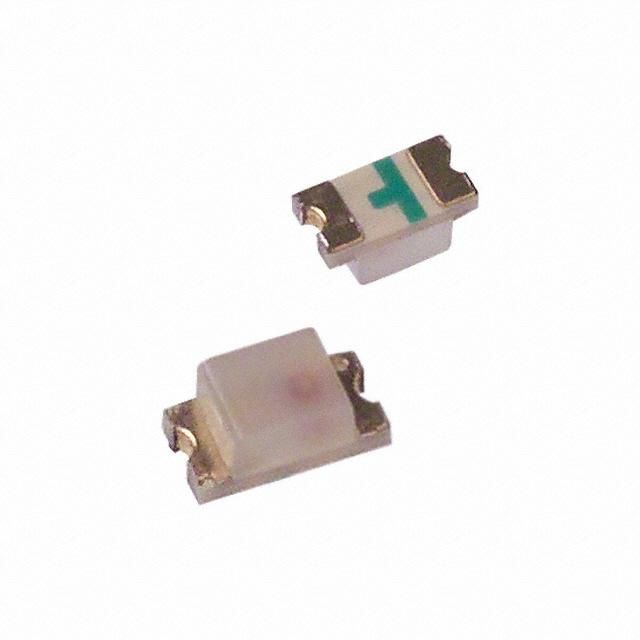

Product Images
