Single Color Green LED emitter, featuring a clear, untinted, nondiffused lens. This surface-mount device (SMD/SMT) offers a 130° viewing angle and a luminous intensity of 150mcd. Operating with a forward current of 20mA and a DC rated voltage of 3.4V, it has a power dissipation of 78mW. The LED is housed in a lead-free plastic package measuring 3.2mm x 1.5mm with a 1mm height, and operates within a temperature range of -40°C to 85°C.
PackageSMD/SMT
MountingSurface Mount
Power78mW
Quick Jump:
Technical Specifications
Broadcom HSMQ-C110 technical specifications.
General
| Package/Case | SMD/SMT |
| Color | Green |
| Depth | 1mm |
| Forward Current | 20mA |
| Height | 1mm |
| Illumination Color | Green |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Lens Color | Colorless |
| Lens Size | 1mm |
| Lens Style | Domed, Dome, Diffused, Colorless, Rectangular |
| Lens Transparency | Clear |
| Luminous Intensity | 150mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 78mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Angle | 130° |
| DC Rated Voltage | 3.4V |
| Wavelength | 527nm |
| Width | 1.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HSMQ-C110 Datasheet
Download the complete datasheet for Broadcom HSMQ-C110 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

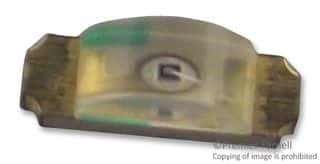

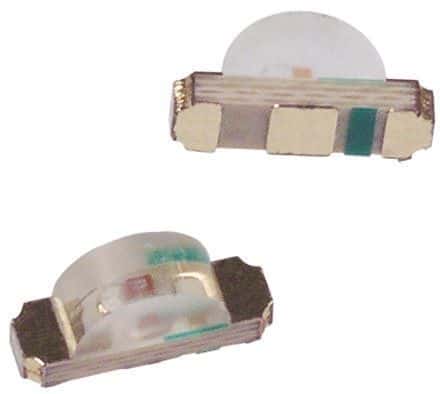

Product Images
