Broadcom
HSMR-C130
Single Color LED, Blue, Untinted Diffused, 1.15mm, 1.60 X 0.80 MM, 0.35 MM HEIGHT, LEAD FREE, PLASTIC PACKAGE-2
Package0603
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom HSMR-C130 technical specifications.
General
Package/Case
0603
Color
Blue
Forward Current
20mA
Height
0.35mm
Illumination Color
Blue
Length
1.6mm
Lens Color
White
Lens Style
Diffused, Colorless, Rectangular
Lens Transparency
Diffused
Luminous Intensity
55mcd
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of LEDs
1
Package Quantity
4000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Viewing Angle
145°
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Broadcom HSMR-C130 Datasheet
Download the complete datasheet for Broadcom HSMR-C130 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

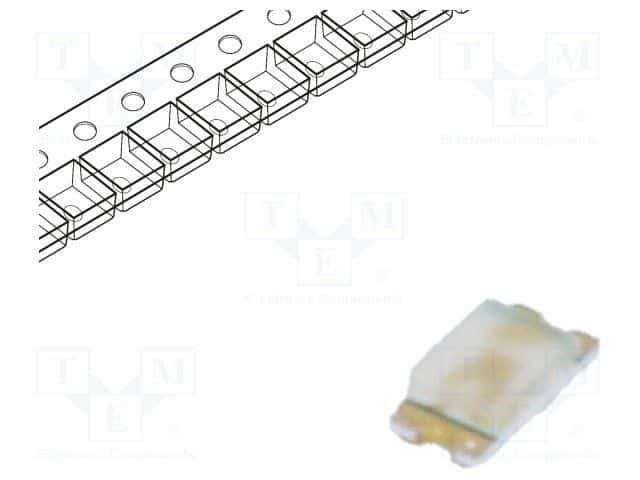

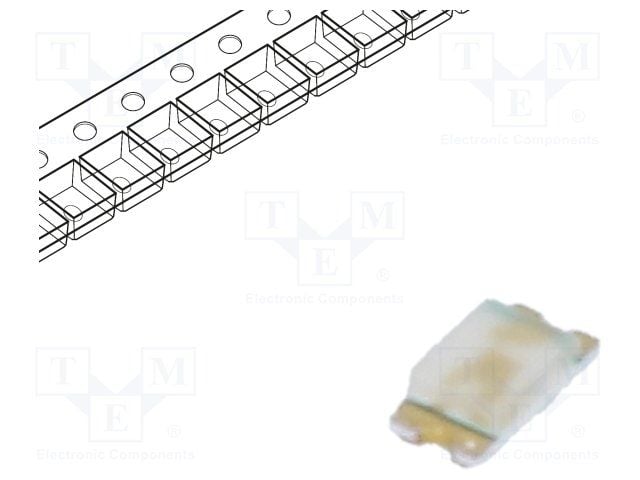

Product Images
