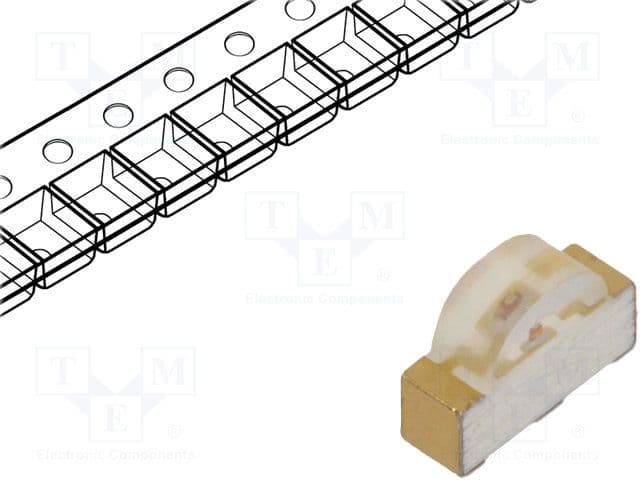

Surface mount single color LED emitter, featuring high efficiency red illumination. This component offers a 125° viewing angle and a luminous intensity of 5.1mcd at a forward current of 20mA. It operates within a temperature range of -40°C to 85°C and has a maximum reverse voltage of 5V. The LED is housed in a 3mm x 1mm x 1mm SMD/SMT package with a colorless, diffused lens.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HSMS-C680 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Broadcom HSMS-C680 technical specifications.
| Package/Case | SMD/SMT |
| Color | Red |
| Depth | 1mm |
| Forward Current | 20mA |
| Height | 1mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 3mm |
| Lens Color | Colorless |
| Lens Style | Diffused, Colorless, Rectangular |
| Lens Transparency | Clear |
| Luminous Intensity | 5.1mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 65mW |
| Radiation Hardening | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Angle | 125° |
| Wavelength | 621nm |
| Width | 1mm |
| RoHS | Compliant |
