Optical transceiver featuring a 700nm wavelength, designed for fiber optic communication. This through-hole mount component operates with a 5V supply voltage and draws a typical 4mA operating current, with a maximum output current of 50mA. It supports data rates up to 5Mbps and functions within an extended temperature range of -40°C to 85°C. The compact package measures 9mm in height, 5.5mm in length, and 5.5mm in width, supplied in bulk packaging with 200 units per package. This RoHS compliant transceiver is ideal for various optical networking applications.
MountingThrough Hole
Quick Jump:
Technical Specifications
Broadcom SP000063860 technical specifications.
General
Height
9mm
Length
5.5mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
50mA
Mount
Through Hole
Operating Supply Current
4mA
Operating Supply Voltage
5V
Package Quantity
200
Packaging
Bulk
RoHS Compliant
Yes
Wavelength
700nm
Width
5.5mm
Compliance
RoHS
Compliant
Datasheet
Broadcom SP000063860 Datasheet
Download the complete datasheet for Broadcom SP000063860 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

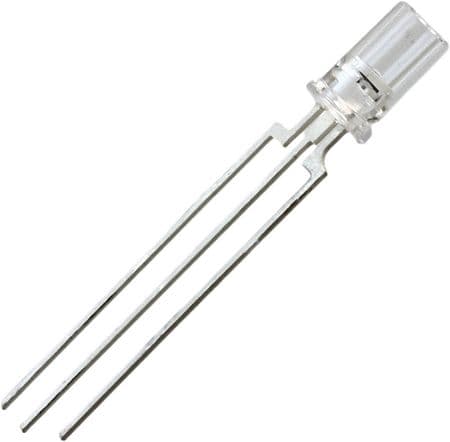

Product Images
