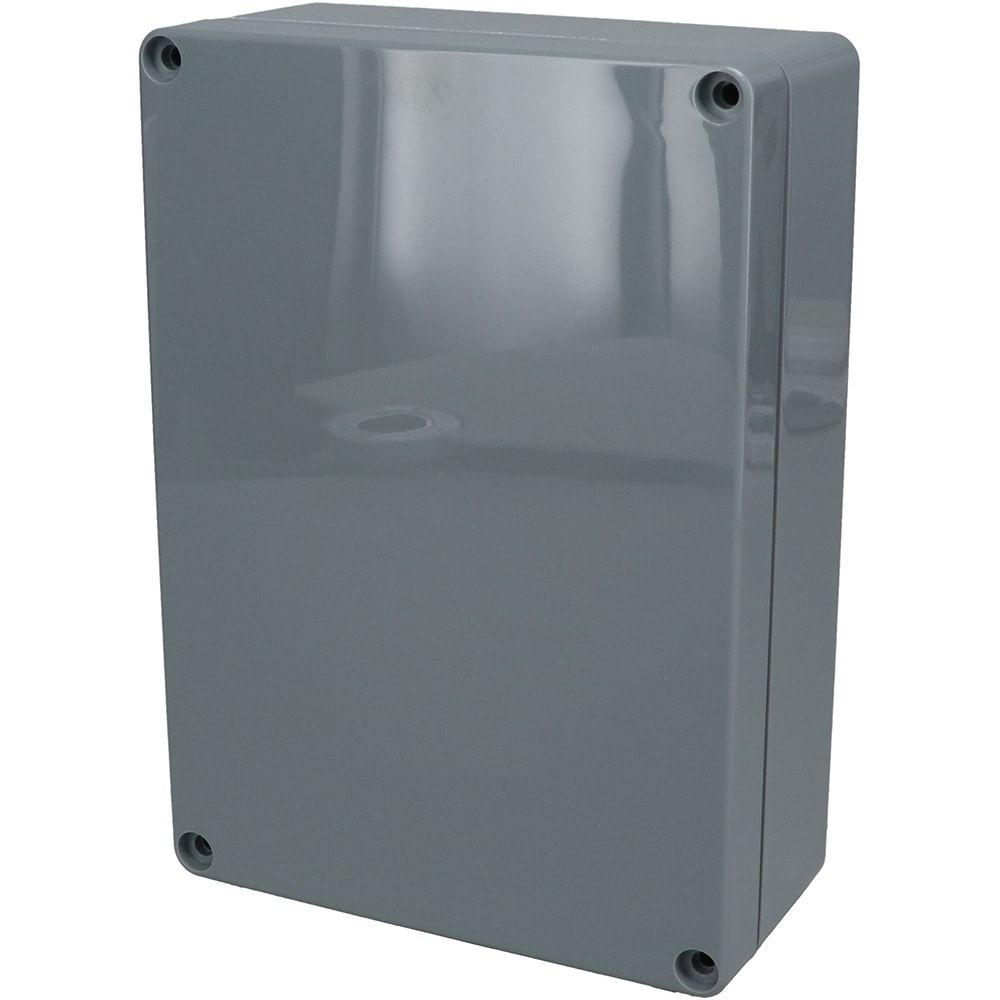

General purpose ABS plastic enclosure, grey, featuring IP65 and IP66 ratings for dust and water protection. Dimensions are 170.95mm length, 120.91mm width, and 55.12mm height (2.17 inches depth). Operating temperature range is -40°C to 80°C, with a UL94 HB flammability rating. Designed for wall mounting and constructed from lead-free ABS material.
MountingWall
Quick Jump:
Technical Specifications
BUD Industries PN-1324-DG technical specifications.
General
Body Color
Grey
Color
Grey
Depth
2.17inch
Flammability Rating
UL94 HB
Height
55.12mm
Housing Color
Grey
Lead Free
Lead Free
Length
170.95mm
Material
Plastic, ABS
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Mount
Wall
Package Quantity
1
Packaging
Bulk
Ratings
IP65, IP66
Reach SVHC Compliant
Unknown
Series
PN
Weight
0.625lb
Width
120.91mm
Compliance
RoHS
Compliant
Datasheet
BUD Industries PN-1324-DG Datasheet
Download the complete datasheet for BUD Industries PN-1324-DG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
