Right-angle male pin header connector with 5 positions and 5 contacts. Features gold-plated copper alloy square contacts for reliable mating, a 1A current rating, and 30V DC rated voltage. Constructed from UL94 V-0 rated black polycarbonate insulation, this component offers a 2.54mm pitch and is designed for through-hole solder termination. Operating temperature range is 0°C to 70°C.
Current Rating1A
MountingThrough Hole
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Bulgin 14192 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Bulgin 14192 technical specifications.
General
| Color | Black |
| Contact Finish - Mating | GOLD |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 1A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Insulation Color | White |
| Length | 12.7mm |
| Material | Polycarbonate |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Buccaneer® |
| Termination | Solder |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Bulgin 14192 Datasheet
Download the complete datasheet for Bulgin 14192 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

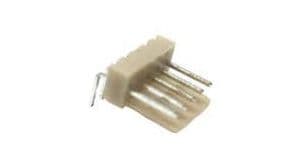

Product Images
