The Polysnap BVA 3-position power connector is a module-style connector with a nickel-plated contact. It has a current rating of 10A and a voltage rating of 250V AC and DC. The connector is suitable for panel mount applications and has a flammability rating of UL94 V-0. It is available in a bulk packaging quantity of 25 units and is RoHS compliant.
PackageModule
Voltage Rating250V
Current Rating10A
MountingPanel, Flanges
Quick Jump:
Technical Specifications
Bulgin BVA01/Z0000/02 technical specifications.
General
| Package/Case | Module |
| Contact Plating | Nickel |
| Current Rating | 10A |
| Flammability Rating | UL94 V-0 |
| Fuse | Yes |
| Gender | Male |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Mount | Panel, Flanges |
| Number of Positions | 3 |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Polysnap® BVA |
| Termination | Quick Connect |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Bulgin BVA01/Z0000/02 Datasheet
Download the complete datasheet for Bulgin BVA01/Z0000/02 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

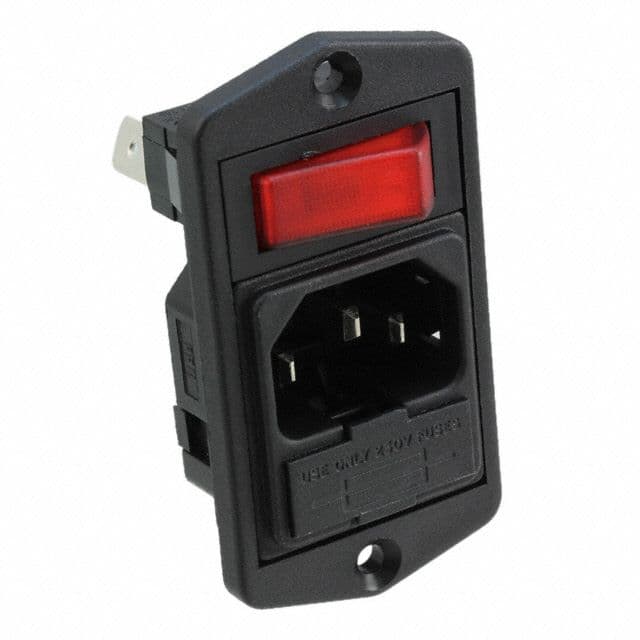

Product Images
