The Polysnap BZH receptacle is a 10A rated module with a voltage rating of 250V AC. It features a flammability rating of UL94 V-0 and is RoHS compliant. The module is available in a package quantity of 25 and is packaged in bulk. It can be mounted to a panel with a thickness of 3mm using a snap-in mechanism. The receptacle has a quick connect termination and is not Reach SVHC compliant.
PackageModule
Current15A
Current Rating10A
MountingPanel, Snap in
Quick Jump:
Technical Specifications
Bulgin BZH11/Z0000/00 technical specifications.
General
| Package/Case | Module |
| Current | 15A |
| Current Rating | 10A |
| Flammability Rating | UL94 V-0 |
| Fuse | Yes |
| Gender | Receptacle |
| Mount | Panel, Snap in |
| Package Quantity | 25 |
| Packaging | Bulk |
| Panel Thickness | 3mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Polysnap® BZH |
| Termination | Quick Connect |
| Voltage Rating (AC) | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Bulgin BZH11/Z0000/00 Datasheet
Download the complete datasheet for Bulgin BZH11/Z0000/00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

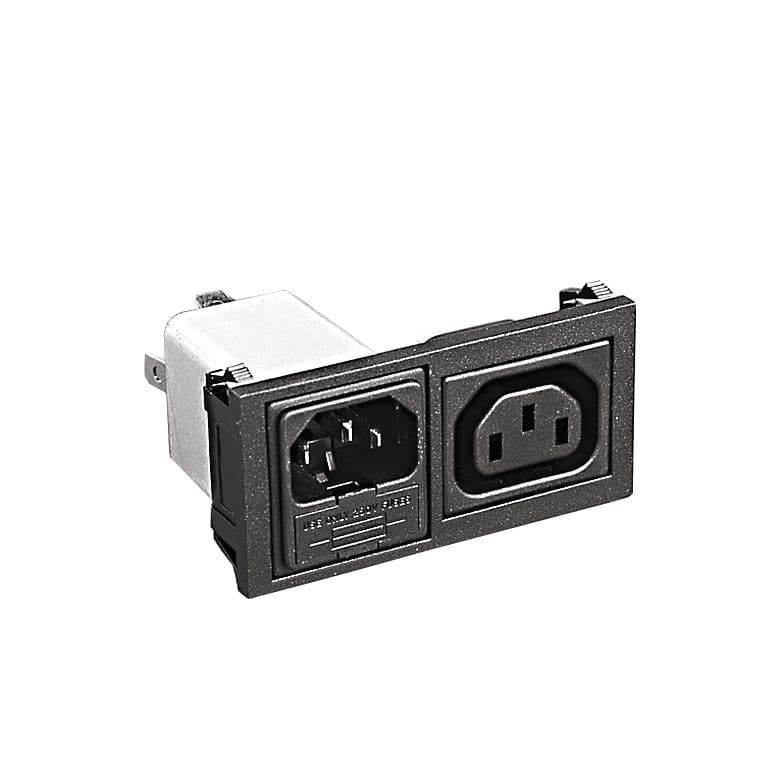

Product Images
