10-position male inline plug connector with straight orientation and screw termination. Features brass contacts with nickel plating, a 10A current rating, and a 250V voltage rating. Constructed with PET and polyester body material, offering IP68, waterproof, and dust-tight ratings. Operates within a temperature range of -20°C to 55°C and meets UL94 V-0 flammability standards.
Voltage Rating250V
Current Rating10A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Bulgin EXP-0911/10/P technical specifications.
General
| Body Material | PET, Polyester |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Nickel |
| Current Rating | 10A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Max Current Rating | 10A |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 250.25kV |
| Mount | Free Hanging, Cable |
| Number of Contacts | 10 |
| Number of Ports | 1 |
| Number of Positions | 10 |
| Orientation | Straight |
| Package Quantity | 10 |
| Packaging | Bulk |
| Ratings | IP68, Waterproof, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | EXPlora |
| Shell Material | Plastic |
| Termination | Screw |
| Voltage Rating | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Bulgin EXP-0911/10/P Datasheet
Download the complete datasheet for Bulgin EXP-0911/10/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

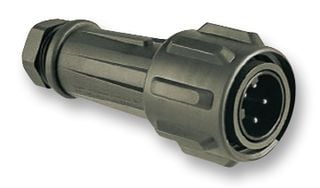

Product Images
