Technical Specifications
Bulgin PX0410/06P/6065 technical specifications.
General
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Type | Crimp and Solder Cup |
| Current Rating | 5A |
| Max Current Rating | 5A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 125.125kV |
| Mount | Free Hanging, Cable |
| Number of Contacts | 6 |
| Number of Ports | 1 |
| Number of Positions | 6 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP68, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | Buccaneer® 400 |
| Strain Relief | No (Without) |
| Termination | Crimp |
| Voltage Rating | 125V |
Compliance
| RoHS | Compliant |
Datasheet
Bulgin PX0410/06P/6065 Datasheet
Download the complete datasheet for Bulgin PX0410/06P/6065 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

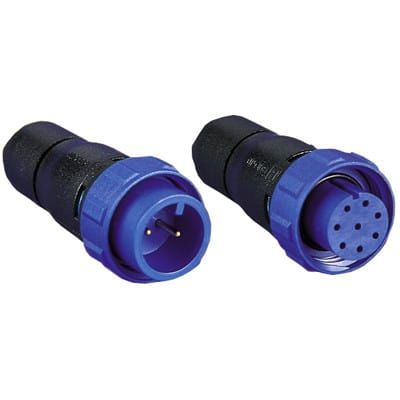

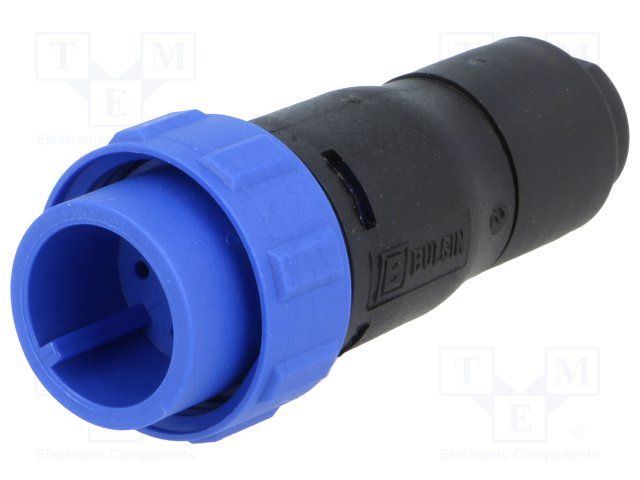

Product Images
