Mains power connector featuring a male, right-angle configuration with three pins for solder termination. Rated for 250V AC/DC and 10A/15A current, this black, UL94 V-0 flammability rated component offers a wide operating temperature range of -40°C to 70°C. Designed for panel mounting with through-hole and flange options, it boasts tin contact plating and is RoHS compliant.
Current15A
Voltage Rating250V
Current Rating10A
MountingThrough Hole, Panel, Flanges
Quick Jump:
Technical Specifications
Bulgin PX0580/PC technical specifications.
General
| Color | Black |
| Contact Plating | Tin |
| Contact Type | Pin |
| Current | 15A |
| Current Rating | 10A |
| Flammability Rating | UL94 V-0 |
| Fuse | No |
| Gender | Male |
| Lead Free | Lead Free |
| Max Current Rating | 10A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole, Panel, Flanges |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Orientation | Right Angle |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PX |
| Termination | Solder |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Bulgin PX0580/PC Datasheet
Download the complete datasheet for Bulgin PX0580/PC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

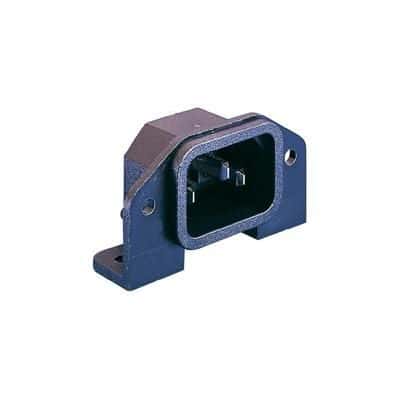

Product Images
