4-position male circular connector with nickel-plated brass pin contacts. Features a straight, free-hanging mounting orientation and screw termination. Rated for 6A current and 250V AC/DC, with an operating temperature range of -20°C to 70°C. Constructed with a nylon, glass, and polyamide body, it offers IP68, waterproof, and dust-tight sealing. Approvals include UL, CSA, and VDE.
Voltage Rating250V
Current Rating6A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Bulgin PX0749/P technical specifications.
General
| Approvals | UL, CSA, VDE |
| Body Material | Nylon, Glass, Polyamide |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Nickel |
| Contact Type | Pin |
| Current Rating | 6A |
| Flammability Rating | UL94 HB |
| Gender | Male |
| Length | 65mm |
| Max Current Rating | 6A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 250.25kV |
| Mount | Free Hanging, Cable |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Operating Supply Voltage | 250V |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Bulk |
| Plating | Polyamide |
| Primary Type | Sealed |
| Ratings | IP68, Waterproof, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Buccaneer |
| Strain Relief | No (Without) |
| Termination | Screw |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Bulgin PX0749/P Datasheet
Download the complete datasheet for Bulgin PX0749/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

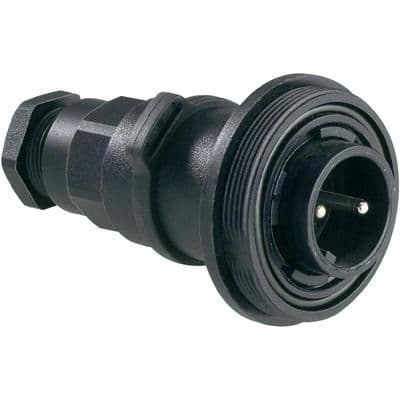

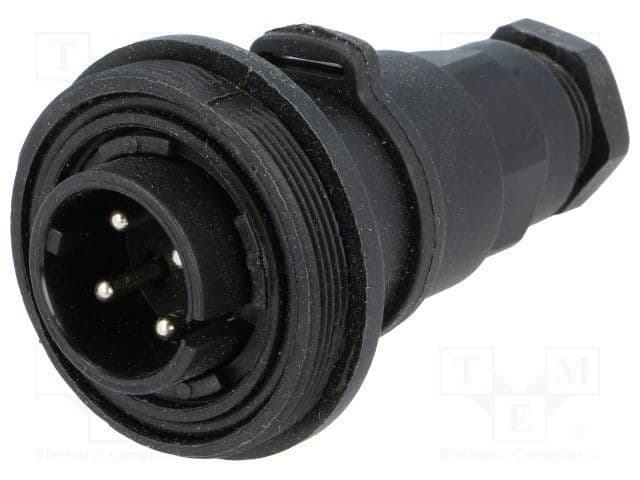

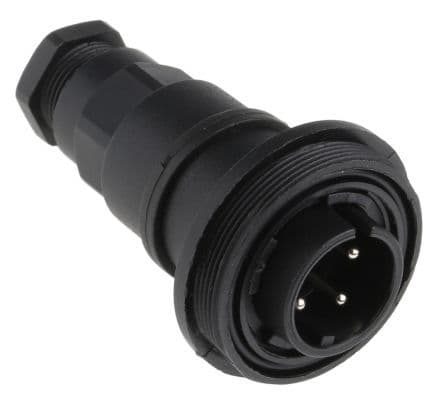

Product Images
