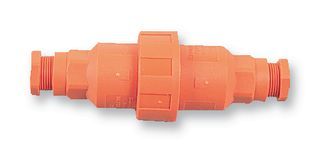

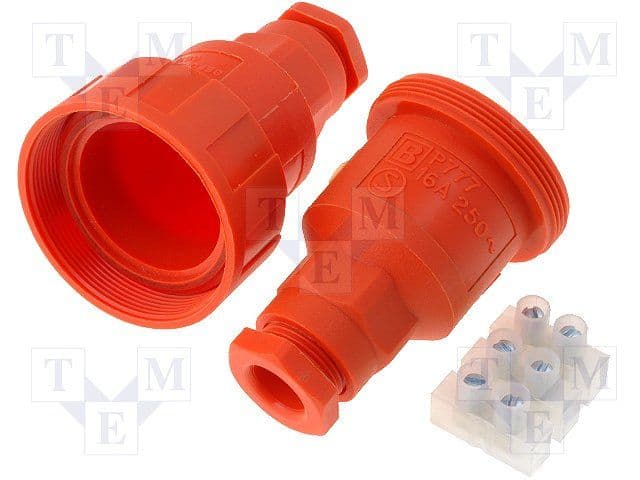

Sealed in-line connection accessory for cables up to 8mm diameter. Features a polyamide body in orange, with brass contacts plated in nickel. Rated for 250V and 16A, with a temperature range of -20°C to 70°C and IP68 sealing. This free-hanging, crimp-termination component offers 3 circuits across 2 rows and 6 wire entries, with a flammability rating of UL94 HB.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bulgin PX0777/OR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bulgin PX0777/OR technical specifications.
| Body Material | Nylon, Polyamide |
| Color | Orange |
| Contact Material | Brass |
| Contact Plating | Nickel |
| Current Rating | 16A |
| Diameter | 38.1mm |
| Flammability Rating | UL94 HB |
| Insulation Material | Nylon |
| Length | 105mm |
| Material | Nylon |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Free Hanging, Cable |
| Number of Circuits | 3 |
| Number of Rows | 2 |
| Number of Wire Entries | 6 |
| Packaging | Bulk |
| Ratings | IP68 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Buccaneer® |
| Termination | Crimp |
| Voltage Rating | 250V |
| Wire/Cable Diameter | 8mm |
| RoHS | Compliant |
