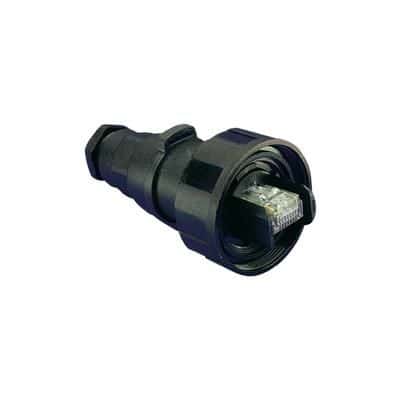

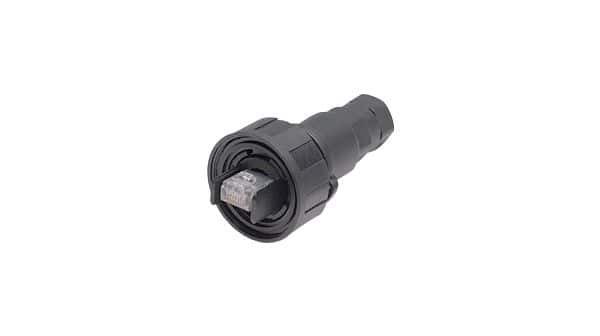

Eight-contact, male plug for telecom and datacom applications. Features straight, shielded orientation with IDC termination and a clear, bronze housing. Rated for 1.5A current and 30V DC, with a maximum operating temperature of 70°C. IP68, waterproof, and dust-tight compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bulgin PX0834/B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bulgin PX0834/B technical specifications.
| Color | Clear |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 1.5A |
| Diameter | 38.1mm |
| Gender | Male |
| Material | Bronze |
| Max Current Rating | 1.5A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 4.23kV |
| Mount | Cable |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Positions | 1 |
| Number of Ways | 8 |
| Orientation | Straight |
| Package Quantity | 10 |
| Packaging | Bulk |
| Primary Type | ETHERNET |
| Ratings | IP68, Waterproof, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Ethernet Buccaneer® |
| Shielding | Shielded |
| Termination | IDC |
| Voltage Rating (AC) | 714mV |
| DC Rated Voltage | 30V |
| Wire/Cable Type | Round |
| RoHS | Compliant |
