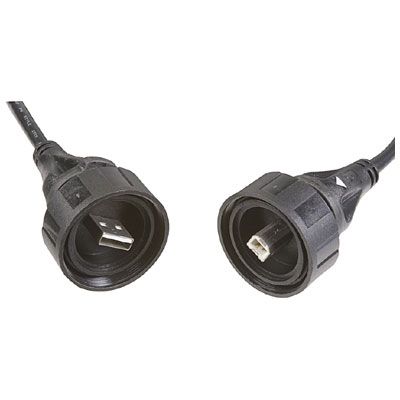

5-meter, black USB cable assembly featuring male-to-male USB A and USB B connectors. This shielded cable assembly utilizes a PVC jacket and copper alloy contacts with gold plating, rated for 1A current and 30V. Designed for robust environments, it boasts an IP68 rating and operates between 0°C and 70°C. The 4-conductor, 4-position cable is 25AWG and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bulgin PX0841/AB/5M00 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bulgin PX0841/AB/5M00 technical specifications.
| Color | Black |
| Connector Type A | USB |
| Connector Type B | USB |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 1A |
| Gender | Male to Male |
| Jacket Material | PVC |
| Length | 5m |
| Max Current Rating | 1A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Voltage Rating (AC) | 30V |
| Number of Conductors | 4 |
| Number of Positions | 4 |
| Packaging | Bulk |
| Ratings | IP68 |
| RoHS Compliant | Yes |
| Series | Buccaneer® |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 30V |
| Voltage Rating (AC) | 30V |
| DC Rated Voltage | 30V |
| Wire/Cable Gauge | 25AWG |
| Wire/Cable Type | USB, PVC |
| RoHS | Compliant |
Download the complete datasheet for Bulgin PX0841/AB/5M00 to view detailed technical specifications.
