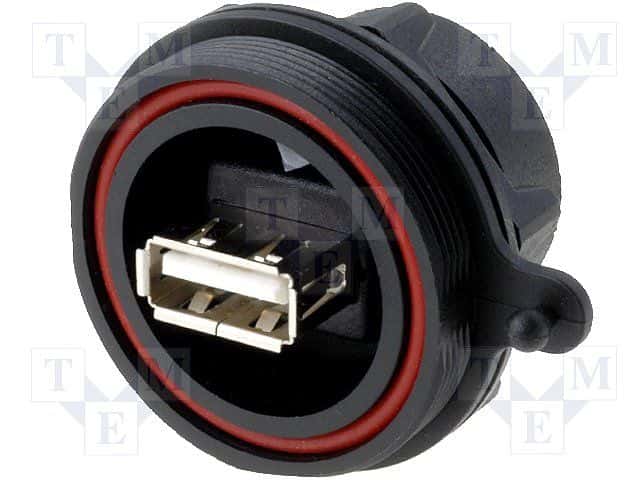

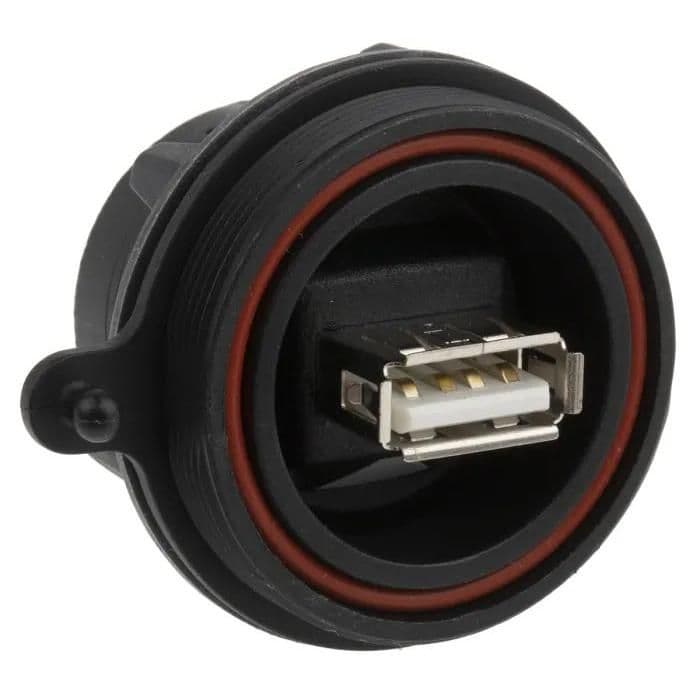

This female, straight, 4-position socket connector features a black, UL94 V-0 rated housing and gold-plated copper alloy contacts. Rated for 1A and 30V AC/DC, it supports USB 2.0 connectivity and is designed for panel or bulkhead mounting with a rear side nut. The component offers IP68 ingress protection and operates within a temperature range of 0°C to 70°C.
Voltage Rating30V
Current Rating1A
MountingPanel, Bulkhead, Rear Side Nut
Quick Jump:
Technical Specifications
Bulgin PX0842/A technical specifications.
General
Color
Black
Contact Gender
Male
Contact Material
Copper Alloy, Copper
Contact Plating
Gold
Current Rating
1A
Flammability Rating
UL94 V-0
Gender
Female
Lead Free
Lead Free
Length
34.5mm
Max Current Rating
1A
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Voltage Rating (AC)
30V
Mount
Panel, Bulkhead, Rear Side Nut
Number of Contacts
4
Number of Ports
1
Number of Positions
4
Orientation
Straight
Packaging
Tray
Ratings
IP68
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Buccaneer®
Termination
Crimp
USB Standard
USB 2.0
Voltage Rating
30V
Voltage Rating (AC)
30V
Compliance
RoHS
Compliant
Datasheet
Bulgin PX0842/A Datasheet
Download the complete datasheet for Bulgin PX0842/A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
