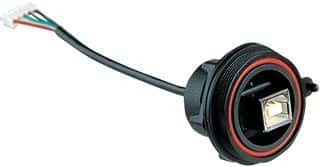

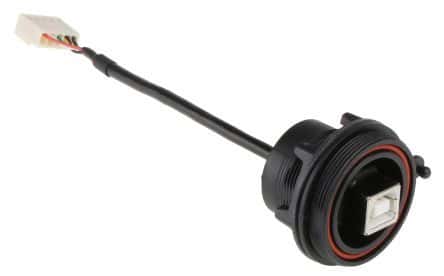

This sealed, shielded cable assembly adapter features a USB Type B plug (male contacts) on one end and a wire-to-board connection with 5 positions (female contacts) on the other. It supports a current rating of 1A and a voltage rating of 30V AC/DC, with gold-plated copper alloy contacts for reliable conductivity. The black, round PVC cable is UL94 V-0 rated for flammability and operates within a temperature range of 0°C to 70°C. Designed for panel mounting, this RoHS compliant assembly offers IP68 sealing for robust environmental protection.
Voltage Rating30V
Current Rating1A
MountingPanel
Quick Jump:
Technical Specifications
Bulgin PX0843/B technical specifications.
General
| Color | Black |
| Connector Type A | USB, Plug |
| Connector Type B | USB, Plug |
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Current Rating | 1A |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Lead Free | Lead Free |
| Max Current Rating | 1A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Voltage Rating (AC) | 30V |
| Mount | Panel |
| Number of Conductors | 4 |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Number of Positions | 5 |
| Package Quantity | 10 |
| Plating | Nickel |
| Primary Type | Sealed |
| Ratings | IP68 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Buccaneer® |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 30V |
| Wire/Cable Color | Black |
| Wire/Cable Type | Round, USB, PVC |
Compliance
| RoHS | Compliant |
Datasheet
Bulgin PX0843/B Datasheet
Download the complete datasheet for Bulgin PX0843/B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
