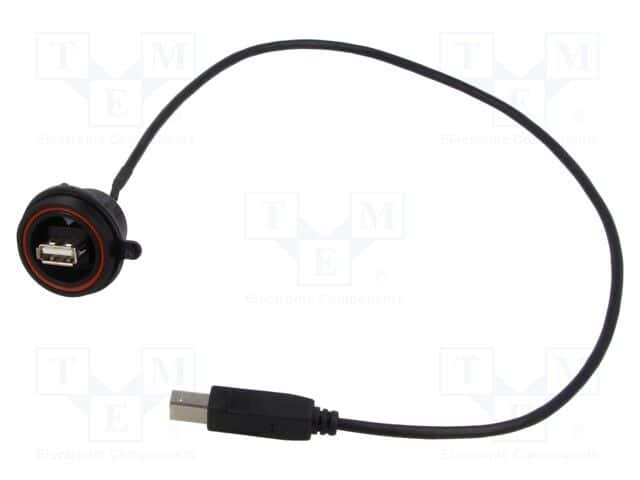

Shielded USB 2.0 cable assembly featuring a straight, panel-mount receptacle on one end and a straight plug on the other. This 0.5-meter (1.64-foot) black cable utilizes copper alloy contacts with gold plating and a 4-position, 4-contact configuration. Rated for 1A current and 30V, it operates within a temperature range of 0°C to 70°C and boasts a UL94 V-0 flammability rating.
Voltage Rating30V
Current Rating1A
MountingPanel
Quick Jump:
Technical Specifications
Bulgin PX0844/A/0M50/B technical specifications.
General
| Color | Black |
| Connector Type A | USB, Receptacle, Plug |
| Connector Type B | USB, Plug |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 1A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Length | 1.64foot |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Panel |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Orientation | Straight |
| Package Quantity | 10 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Buccaneer® |
| Shielding | Shielded |
| Termination | Screw |
| USB Standard | USB 2.0 |
| Voltage Rating | 30V |
| Voltage Rating (AC) | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Bulgin PX0844/A/0M50/B Datasheet
Download the complete datasheet for Bulgin PX0844/A/0M50/B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
