Shielded, panel-mount USB 2.0 receptacle connector with a straight, male gender and 4 positions. Features gold-plated copper alloy contacts, a 1A current rating, and a 30V voltage rating. Operates within a temperature range of 0°C to 70°C and boasts a UL94 V-0 flammability rating. Designed for round, PVC wire/cable types and offers IP68 environmental sealing.
Voltage Rating30V
Current Rating1A
MountingPanel
Quick Jump:
Technical Specifications
Bulgin PX0849/B technical specifications.
General
| Color | Black |
| Connector Type A | USB |
| Connector Type B | Receptacle |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 1A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Max Current Rating | 1A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Voltage Rating (AC) | 30V |
| Mount | Panel |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Number of Positions | 4 |
| Orientation | Straight |
| Package Quantity | 10 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Buccaneer® |
| Shielding | Shielded |
| Termination | Solder |
| USB Standard | USB 2.0 |
| Voltage Rating | 30V |
| Wire/Cable Type | Round, PVC |
Compliance
| RoHS | Compliant |
Datasheet
Bulgin PX0849/B Datasheet
Download the complete datasheet for Bulgin PX0849/B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

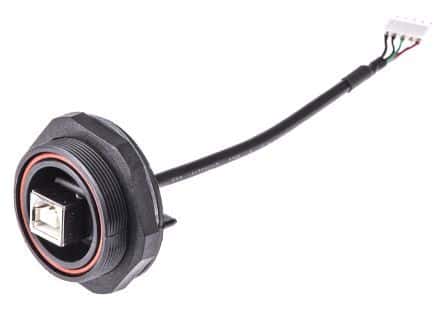

Product Images
