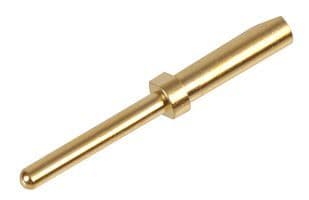

Male, straight solder termination pin contact for cable mounting. Features a copper alloy contact material with gold plating, rated for 5A current and 380V voltage. Suitable for wire gauges between 20AWG and 24AWG, operating within a temperature range of -20°C to 70°C. This unshielded component offers IP68 rating and RoHS compliance.
Voltage Rating380V
Current Rating5A
MountingCable
Quick Jump:
Technical Specifications
Bulgin SA3148/1 technical specifications.
General
| Contact Gender | Male |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Type | Pin |
| Current Rating | 5A |
| Gender | Male |
| Insulation Material | Nylon |
| Max Current Rating | 5A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Cable |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Bulk |
| Ratings | IP68 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Buccaneer®, Mini |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 380V |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 20AWG |
| Wire/Cable Gauge | 20AWG |
Compliance
| RoHS | Compliant |
Datasheet
Bulgin SA3148/1 Datasheet
Download the complete datasheet for Bulgin SA3148/1 to view detailed technical specifications.
