Male, straight, pin contact connector accessory for cable mounting. Features copper alloy and copper contacts with gold plating, rated for 1A current and 50V DC voltage. Operates within a temperature range of -40°C to 80°C and offers IP68 environmental sealing. Designed for crimp termination of 24-28AWG wire, supplied in bulk packaging. RoHS compliant.
Voltage Rating50V
Current Rating1A
MountingCable
Quick Jump:
Technical Specifications
Bulgin SA3180 technical specifications.
General
| Contact Gender | Male |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Gold |
| Contact Type | Pin |
| Current Rating | 1A |
| Gender | Male |
| Max Current Rating | 1A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Bulk |
| Ratings | IP68 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Buccaneer® |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Wire Gauge (Max) | 28AWG |
| Wire Gauge (Min) | 24AWG |
| Wire/Cable Gauge | 24AWG |
Compliance
| RoHS | Compliant |
Datasheet
Bulgin SA3180 Datasheet
Download the complete datasheet for Bulgin SA3180 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

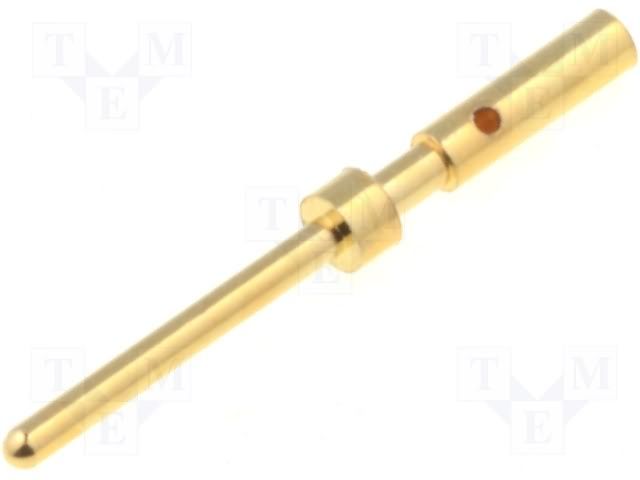

Product Images
