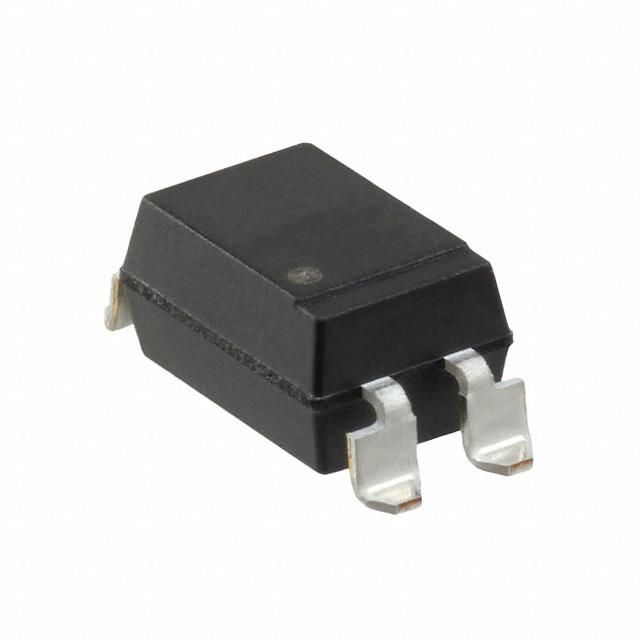

The CEL PS2501L-1-L-A is a general purpose optocoupler with a collector-emitter voltage-max of 80V and a max collector current of 50mA. It operates over a temperature range of -55°C to 100°C and is packaged in a lead-free SMD/SMT package. The device has a high isolation voltage of 5kV, making it suitable for high-reliability applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the CEL PS2501L-1-L-A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Collector Emitter Saturation Voltage | 300mV |
| Collector-emitter Voltage-Max | 300mV |
| Current Transfer Ratio | 300% |
| Forward Current | 10mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Lead Free | Lead Free |
| Max Collector Current | 50mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 150mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Output Current per Channel | 50mA |
| Output Voltage | 80V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Series | NEPOC |
| RoHS | Compliant |
