The CEL PS2503L-1-A is an optocoupler with a DC input type and 5kV isolation voltage. It has a maximum operating temperature of 100°C and a minimum operating temperature of -55°C. The device features a maximum output voltage of 40V and an output current per channel of 30mA. It is available in a surface mount package quantity of 100, packaged in rail/Tube.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
CEL PS2503L-1-A technical specifications.
General
| Package/Case | SMD/SMT |
| Collector-emitter Voltage-Max | 250mV |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Lead Free | Lead Free |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 40V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Output Current per Channel | 30mA |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Series | NEPOC |
Compliance
| RoHS | Compliant |
Datasheet
CEL PS2503L-1-A Datasheet
Download the complete datasheet for CEL PS2503L-1-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

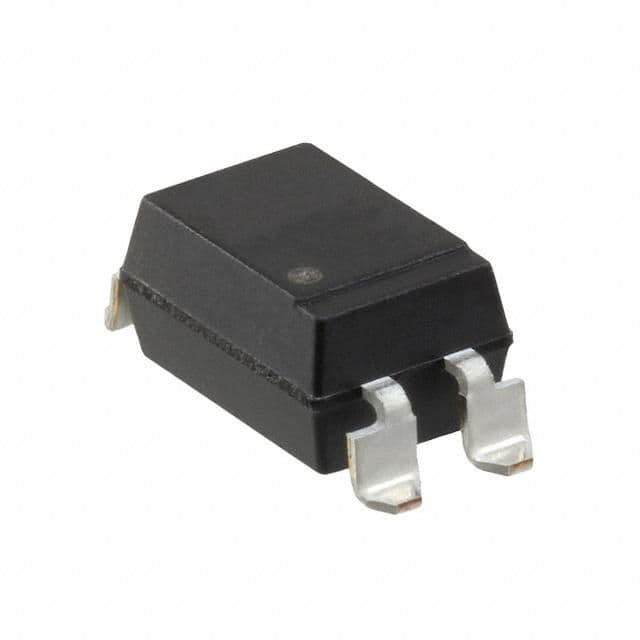

Product Images
