Technical Specifications
CEL PS2506-1-A technical specifications.
General
Package/Case
DIP
Collector Emitter Saturation Voltage
1V
Collector-emitter Voltage-Max
1V
Current Transfer Ratio
2000%
Fall Time
100us
Forward Current
80mA
Isolation Voltage
5kV
Lead Free
Lead Free
Max Collector Current
200mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
40V
Max Power Dissipation
200mW
Mount
Through Hole
Number of Channels
1
Output Current per Channel
200mA
Packaging
Rail/Tube
Series
NEPOC
Compliance
RoHS
Compliant
Datasheet
CEL PS2506-1-A Datasheet
Download the complete datasheet for CEL PS2506-1-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

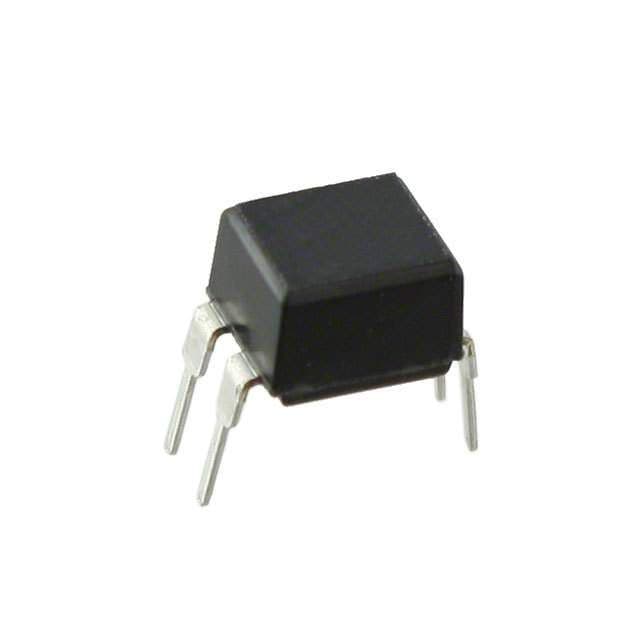

Product Images
