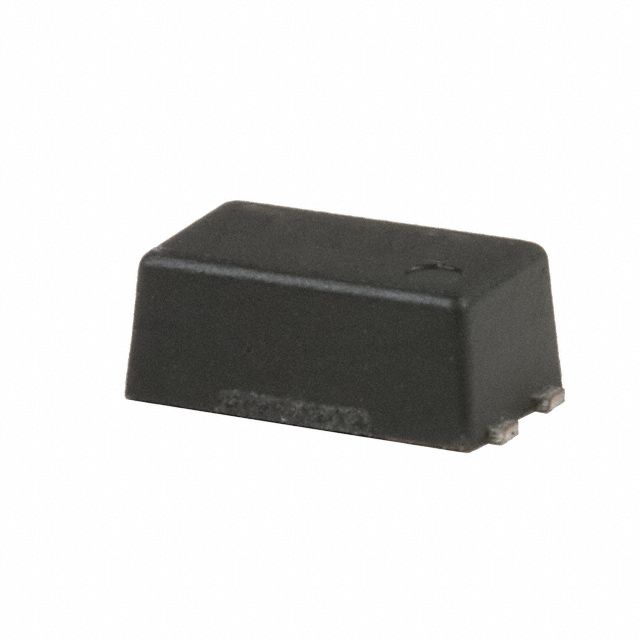

The CEL PS2911-1-A is a single-channel optocoupler with a collector-emitter saturation voltage of 300mV and a maximum collector current of 40mA. It operates within a temperature range of -55°C to 100°C and has a maximum power dissipation of 120mW. The device is packaged in a surface-mount package and is lead-free. It features a high current transfer ratio of 400% and an isolation voltage of 2.5kV.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the CEL PS2911-1-A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
CEL PS2911-1-A technical specifications.
| Package/Case | SMD/SMT |
| Collector Emitter Saturation Voltage | 300mV |
| Collector-emitter Voltage-Max | 300mV |
| Current Transfer Ratio | 400% |
| Input Type | DC |
| Isolation Voltage | 2.5kV |
| Lead Free | Lead Free |
| Max Collector Current | 40mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 40V |
| Max Power Dissipation | 120mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Output Current per Channel | 40mA |
| Package Quantity | 100 |
| Packaging | Bulk |
| RoHS | Compliant |
