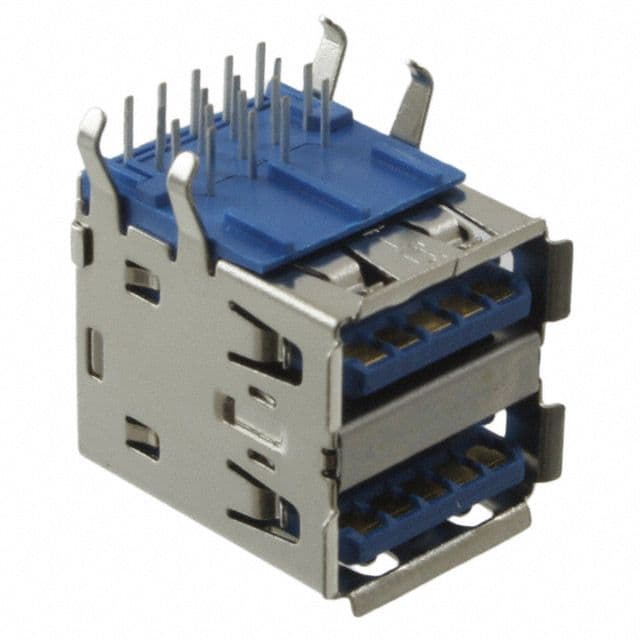

Two-port USB 3.0 Type-A female receptacle with gold-plated contacts and 18 contacts. Features a horizontal, through-hole mount and solder termination. Rated UL94 V-0 for flammability, with an operating temperature range of -40°C to 105°C. Designed for 5000 mating cycles.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the CNC Tech 1003-004-01010 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Contact Plating | Gold |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Insulation Color | Blue |
| Mating Cycles | 5000 |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Horizontal |
| Number of Contacts | 18 |
| Number of Ports | 2 |
| Packaging | Tray |
| Termination | Solder |
| RoHS | Compliant |
