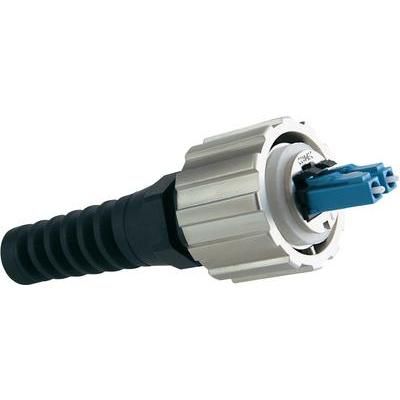

Fiber Optic LC Connector for singlemode applications. Features a bayonet termination and duplex port type, designed for free-hanging mounting. Constructed with a polyether body in silver with a blue housing, operating within a temperature range of -40°C to 85°C. Rated IP67 for waterproof and dust-tight performance, accommodating wire/cable diameters up to 8mm.
MountingFree Hanging
Quick Jump:
Technical Specifications
Conec 17-300410 technical specifications.
General
| Body Material | Polyether |
| Color | Silver |
| Housing Color | Blue |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mode | Singlemode |
| Mount | Free Hanging |
| Package Quantity | 10 |
| Port Type | DUPLEX |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | No |
| Simplex/Duplex | Duplex |
| Termination | Bayonet |
| Wire/Cable Diameter | 8mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Conec 17-300410 Datasheet
Download the complete datasheet for Conec 17-300410 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
