Technical Specifications
Conec 42-00001 technical specifications.
General
| Color | Black, Silver |
| Contact Finish - Mating | GOLD |
| Contact Gender | Male |
| Contact Material | Copper |
| Contact Plating | Gold |
| Current Rating | 3A |
| Gender | Male |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Free Hanging |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| Series | 42 |
| Shell Finish | Nickel |
| Shell Material | ZINC DIE CAST |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 60V |
| Wire/Cable Diameter | 5.5mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Conec 42-00001 Datasheet
Download the complete datasheet for Conec 42-00001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

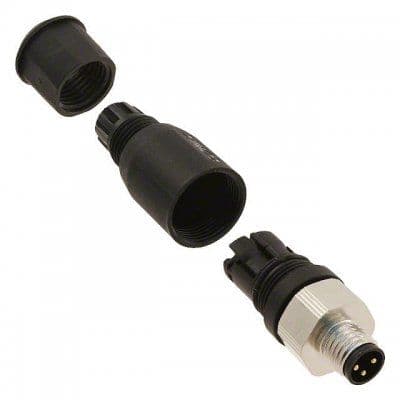

Product Images
