Technical Specifications

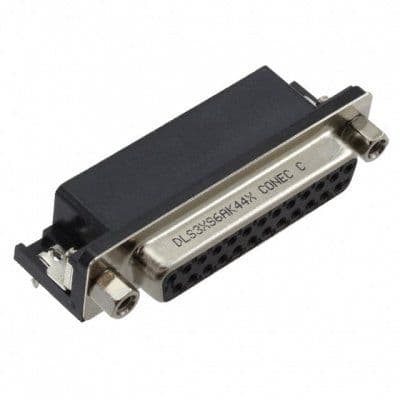

Conec DLS3XS6AK44X technical specifications.
General
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Type | Signal |
| Current Rating | 3A |
| Dielectric Material | Thermoplastic |
| Flammability Rating | UL94 V-0 |
| Insulation Material | Thermoplastic |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, Edge, Board |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 2.77mm |
| Plating | Tin |
| RoHS Compliant | No |
| Shell Material | Steel |
| Shell Size | B |
| Termination | Solder |
| Voltage Rating | 250V |
Compliance
| RoHS | Not Compliant |
Datasheet
Conec DLS3XS6AK44X Datasheet
Download the complete datasheet for Conec DLS3XS6AK44X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
